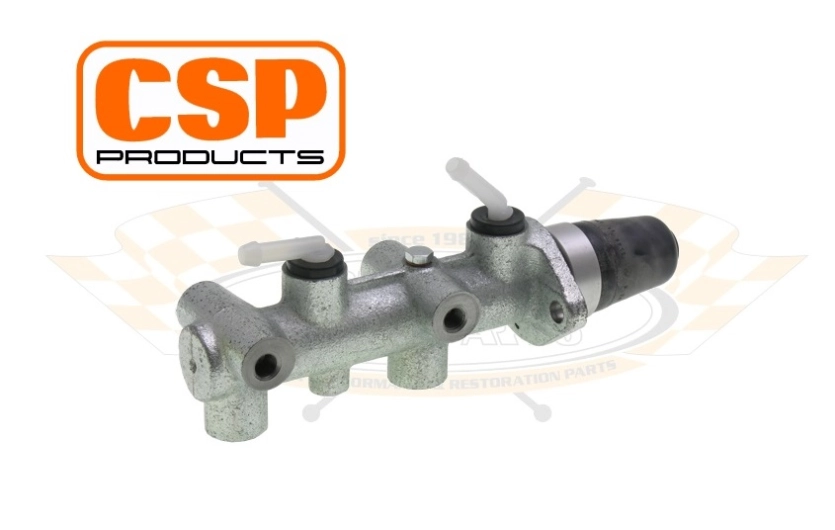

CSP High Performance Type 3 Master Cylinder

Top quality high performance master cylinder to fit all Type 3 models

 This 20.64 mm CSP Products master cylinder is perfect when you convert your Type-3/Type-34 to a vented CSP Products front disc brake system

This master cylinder was originally used with a brake servo and didn`t have a dust cover, which we fitted additionally. It means that the CSP Products master cylinder matches the servo version, but it is not used together with a brake servo in our application

Quality: Top quality

Fitment: Type 3 models

Tips: If you are changing you master cylinder, some or all of the brake pipes may need to be re-routed. This is due to the port layout being different on the new master cylinder. When planning your brake line routing, be sure to fit the brake switch `below` the master cylinder centre line. Otherwise air can be trapped in the system which will make it difficult to bleed the brakes.

It is also VERY important that the end play of the brake pedal pushrod is adjusted correctly. Follow the factory specifications of 1mm endplay. The pushrod can be adjusted using the thread and lock-nut on the pushrod shaft. For some applications you may have to cut the pushrod down in length.

Applications:

VW Type 3: 1961 – 1973
