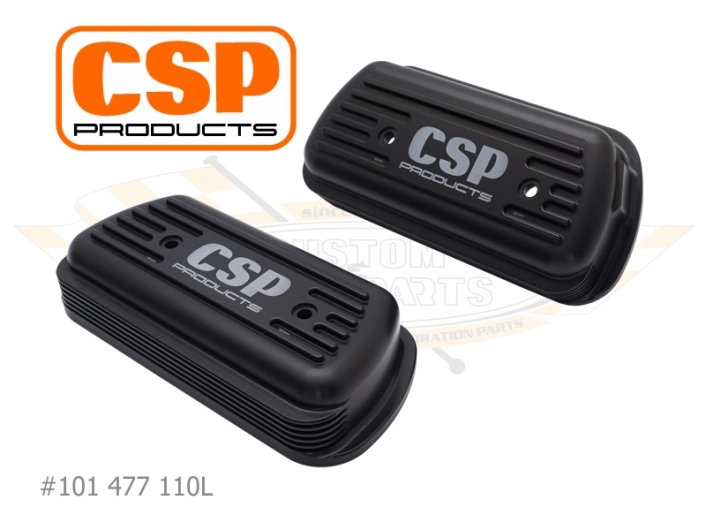

CSP Billet Rocker Covers With Cooling Fins - Type 1 Engines (Laser Engraved Logo)

Billet Rocker Covers from CSP for Type 1 VW Aircooled Engines (1961 Onwards)

Enhance your VW Type 1 aircooled engine with the third generation of CSP Products Billet Rocker Covers. These high-quality, bolt-on rocker covers are designed to provide superior performance, durability, and style for your engine. Featuring a laser-engraved CSP logo and sleek black anodized finish with cooling fins, these covers are perfect for both street and motorsports applications.

Features and Benefits:

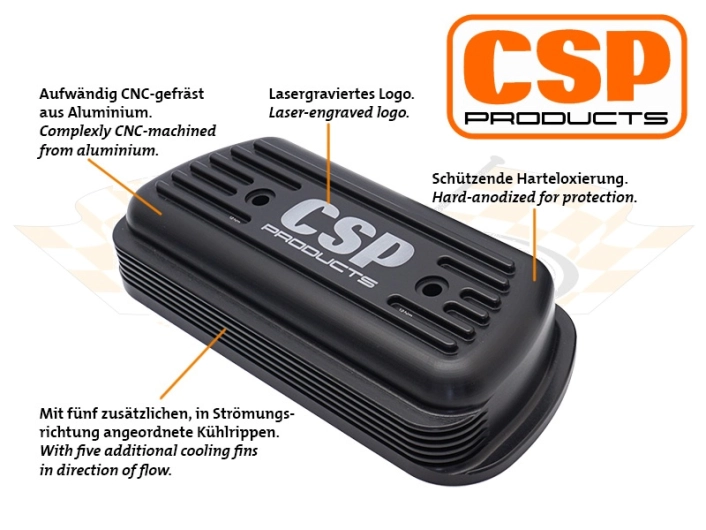

1. Advanced CNC Machining: CSP Products rocker covers are CNC-machined from billet aluminum, ensuring precise dimensions and perfect fitment. This manufacturing method allows for the largest possible inner dimensions to accommodate all common rocker arms while maintaining minimal outer dimensions.

2. Heat Dissipation and Lightweight: The billet aluminum construction provides excellent heat-dissipating properties, keeping your engine cooler. Despite their durability, these covers are incredibly lightweight, with the lightest version weighing just 596 grams, only 247 grams more than a standard VW valve cover.

3. Additional Cooling Fins: The black hard-anodized valve covers feature five additional streamwise cooling fins on the underside. These fins further enhance heat dissipation, ensuring cooler cylinder heads—an essential factor for air-cooled engines.

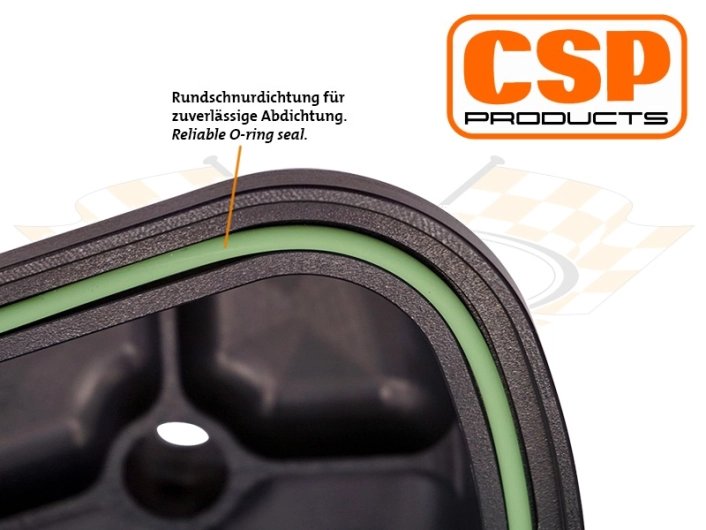

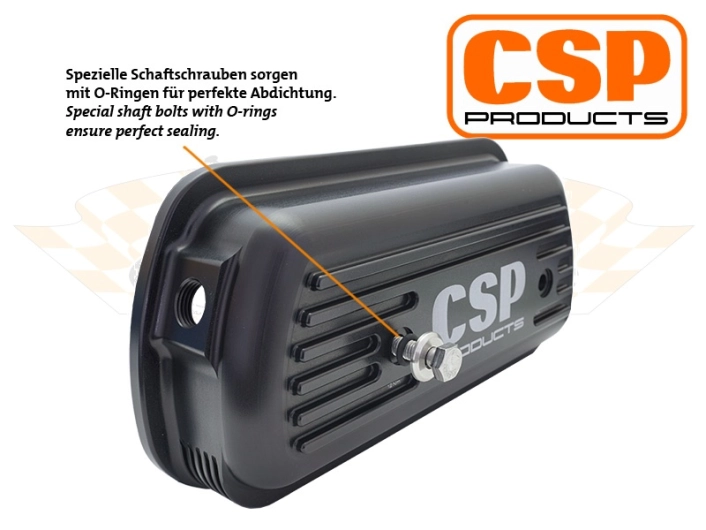

4. Perfect Sealing: Designed for reliability, these rocker covers use O-ring seals and special shaft screws with additional O-rings, ensuring a perfect seal and preventing oil leaks. In emergencies, cork seals can also be used.

5. Reinforced for Rigidity: Organic reinforcement ribs on the inside of the covers provide maximum rigidity, ensuring stability and strength even under extreme conditions.

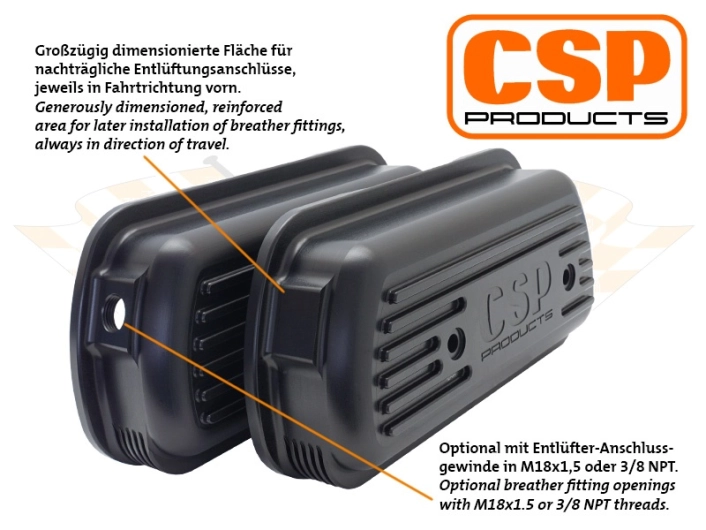

6. Stylish and Functional Design: The rocker covers feature a black hard-anodized finish for corrosion resistance and a sleek look. A laser-engraved CSP Products logo adds a touch of style, while a generously dimensioned, reinforced area allows for the optional installation of breather fittings (available with M18x1.5 or 3/8 NPT threads).

7. High-Quality Hardware: The included hardware is of the highest quality, with special 10.9 nuts to ensure the operational reliability of the engine even at extreme RPMs and high rocker arm ratios.

Why Choose Our Billet Rocker Covers?

Choosing CSP Products Billet Rocker Covers ensures your Type 1 engine benefits from advanced engineering, superior materials, and a stylish design. These rocker covers are an essential upgrade for any enthusiast looking to enhance the performance, reliability, and appearance of their vehicle.

Compatibility:

• Vehicle Models: All Type 1 aircooled engines from 1961 onwards (not suitable for 24.5/36 hp engines)

Specifications:

• Material: Billet aluminum
• Finish: Black hard-anodized
• Weight: 596 grams (lightest version)
• Sealing: O-ring seals, cork seals (emergency use)
• Optional Breather Fittings: M18x1.5 or 3/8 NPT threads

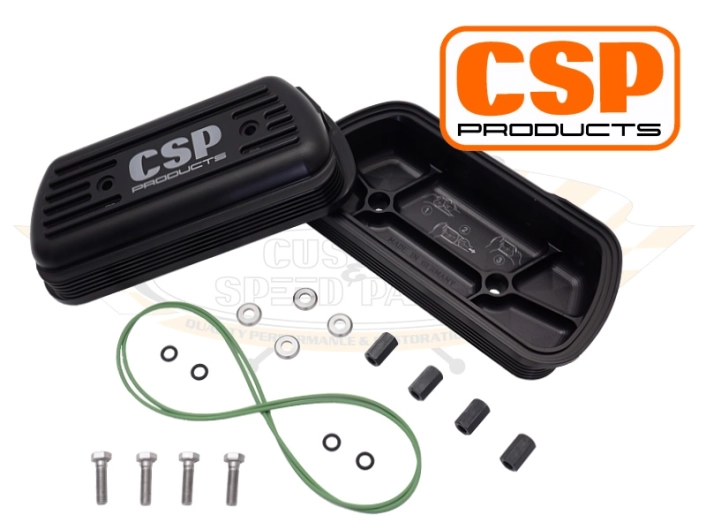

Kit Includes:

• 2x Billet Rocker Covers (left and right versions)
• O-ring seals
• Special shaft screws with additional O-rings
• High-quality hardware with special 10.9 nuts

Installation Guide:

1. Preparation: Ensure the engine is cool and the vehicle is parked on a level surface. Gather the necessary tools and the new rocker covers.
2. Remove Old Covers: Carefully remove the existing rocker covers from the engine. Clean the sealing surfaces to remove any debris or old gasket material.
3. Install O-Ring Seals: Place the O-ring seals on the new CSP rocker covers, ensuring they are seated correctly.
4. Position New Covers: Position the new billet rocker covers over the rocker arms, aligning them properly with the mounting points.
5. Secure Covers: Use the included special shaft screws and 10.9 nuts to secure the rocker covers in place. Tighten the hardware evenly to ensure a proper seal.
6. Final Check: Inspect the installation to ensure the covers are seated correctly and there are no gaps or misalignments. Start the engine and check for any leaks, making any necessary adjustments.

Upgrade your VW engine with CSP Products Billet Rocker Covers and enjoy enhanced performance, reliability, and style. Order your set today and give your VW the upgrade it deserves!
