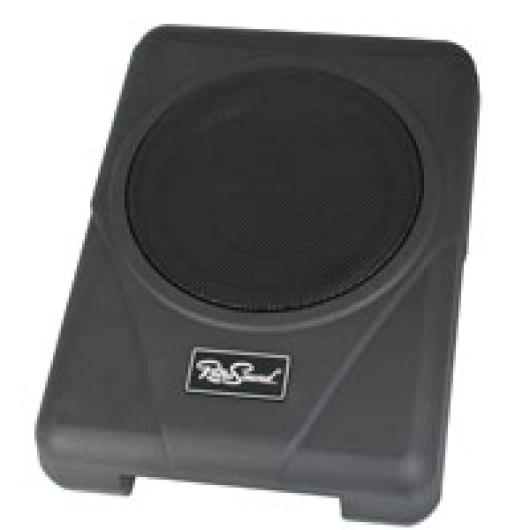

Retro Sounds Subwoofer With Built In Amp

The Retro Sounds sub woofer is a very compact powered subwoofer in a die cast chassis, supplied with a built in 100 Watt amplifier.

This compact unit only stands 2 1/4“ tall making it perfect for mounting under or behind seats or in an area where you wouldn`t normally be able to fit a normal sub and amp.

This minimal height allows this unit be the among the smallest of any current powered 8” enclosed car subwoofer available.

The perfect compliment to the Retro Sounds Stereo and speakers.

Retrosound’s new powered subwoofer is an excellent addition to your classic vehicle’s audio system.

The compact footprint and powerful bass response will allow for behind the seat mounting options for pick up truck owners, under seat mounting for bench or bucket seats and numerous other in – car applications.

The rigid die cast aluminum chassis and powerful Class D amplifier allow this sub to reproduce low frequencies down to 35Hz.

• Amplifier Type: Class D Power Supply Voltage: 10.5 – 16.0 VDC
• Amplifier Stage Output Power @14.4 V: 100 Watts RMS / 200 Watt
• Max S/N Ra o: > 100 dB
• Input Sensitivity: 100 mV – 6.0 V
• Frequency Response: 35 Hz – 100 Hz
• Total Harmonic Distortion: 0.08%
• Filters Low Pass Filter/Slope: 50 Hz – 100 Hz / 12dB
• Phase Control (variable): 0-180
• Other Specifications: Fuse 10A x 1 Size (W x H x L): 9 x 2.75 x 13.74 inches / 349 x 70 x 235 mm Weight: 9 lbs / 4.08 Kg

Quality: Top quality

Applications:

VW Beetle: 1949 – 1979

VW Splitscreen Van: 1950 – 1967

VW Baywindow Van: 1968 – 1979

VW Karmann Ghia: 1955 – 1974

VW Type 3: 1961 – 1973

VW Trekker: 1968 – 1983

VW Buggy + Baja: 1949 – 1979
