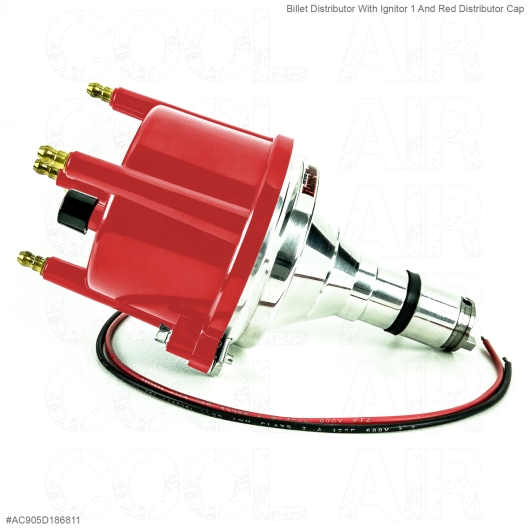

Billet Distributor With Ignitor 1 And Red Distributor Cap

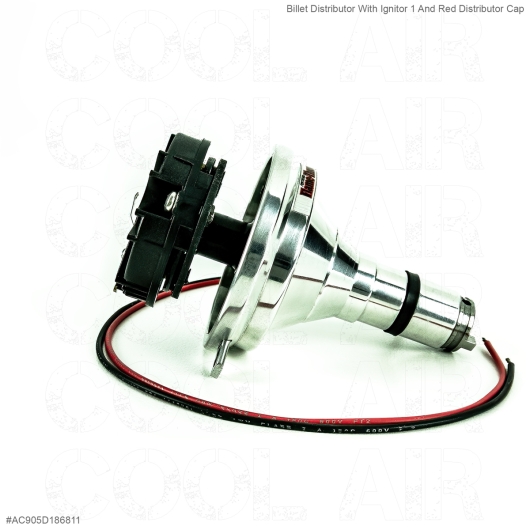

Billet distributor fitted with an Ignitor 1 electronic ignition module and a red cap.

Plug `n` Play, simply install the distributor in the engine, connect two wires and start up.

Designed for maximum ignition performance, replace your outdated points or electronic distributor with this performance proven system, provides huge improvements over points distributors and offers long term trouble free operations.

FEATURES

• Precision CNC machined 6061-T6 billet aluminium housing is lightweight yet strong.
• Each billet distributor is hand polished and buffed to a high luster.
• Tempered distributor shaft has low torsion displacement for accurate timing and extended operational life.
• Upper ball bearing and oil impregnated bronze lower bushing work together to reduce friction and provide shaft and advance mechanical stability reducing high RPM vibration.
• 20CR Steel Gear Heat treated to surface hardness of 45C Rockwell.
• Precision stamped and balanced mechanical advance weights eliminate erratic timing.

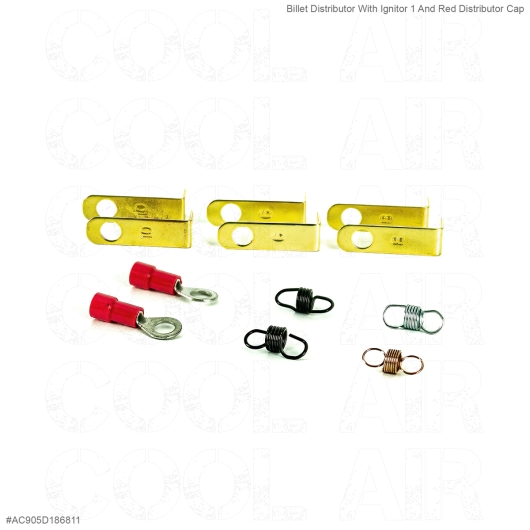

• Adjustable mechanical advance with proprietary limiting function permits multiple settings.  Distributors are factory set with a performance advance curve and are provided with additional springs for custom advance curves.

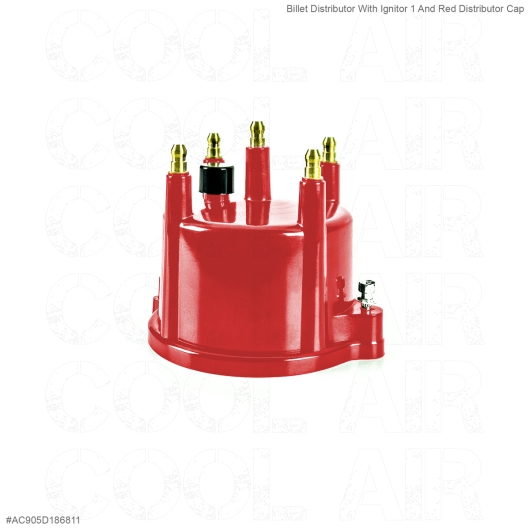

• Premium high dielectric strength cap and rotor manufactured using PBT polymer and brass terminals.

For even more performance, consider adding a compatible Flamethrower coil and a set of Flamethrower HT Leads for increased spark energy and higher RPM potential.

Quality: Top quality

Measurements:

• Width of distributor once installed – 117mm
• Height of distributor once installed – 140mm

Fitment: Not suitable for Type 4 engines

Applications:

VW Beetle: 1960 – 1979

VW Splitscreen Van: 1960 – 1967

VW Baywindow Van: 1968 – 1979

VW Karmann Ghia: 1960 – 1974

VW Type 3: 1961 – 1973

VW Trekker: 1968 – 1983

VW Buggy + Baja: 1960 – 1979
