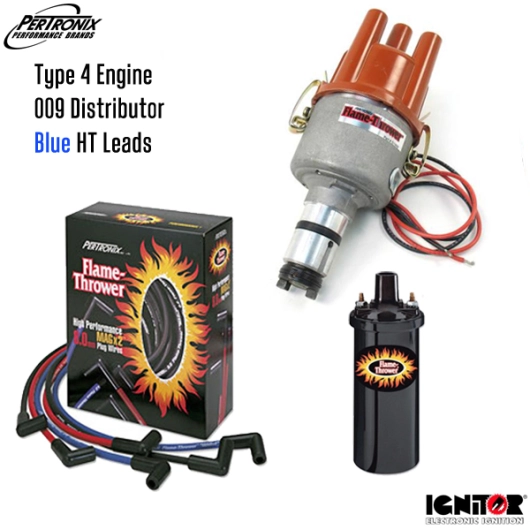

This money Saving Bundle Kit includes a brand new 009 distributor fitted with a pertronix Ignitor 1 electronic ignition, Black Flamethrower 1 coil and Blue Flamethrower HT leads.
For use on all Type 4 engines fitted into any aircooled VW model.
Distributor
The Flame-Thrower “Stock-Look” 009 Distributor is fitted with an Ignitor 1 electronic ignition system.
Each distributor is loaded with features that you would expect from a high performance part, yet maintain the original look for the ultimate “sleeper”.
Built with all new components.
No need to adjust your points or replace your condensors becuase each distributor comes equipped with maintenance free electronics providing decades of trouble free operation.
Each distributor is complete with a high quality cap and rotor, so you`re ready to run right out of the box.
FEATURES
- All new lightweight cast aluminium housing.
- High dielectric strength cap and rotor with brass contacts.
- Optimized phasing insures maximum energy to the spark plug.
- Tailored advance curve for optimal performance and drivability.
- Intergrated electronic ignition
IGNITOR 1 FEATURES
- Delivered twice the voltage to the spark plugs, increasing horsepower, fuel economy and spark plug life.
- 2:1 improvement over “points” in current fall time for increased coil output.
- Rotating cobalt magnets trigger a Hall Effect integrated circuit…no points to burn, no moving parts to wear out.
Ignition Coil
Flamethrower 1 coils are an uprated 40,000 volt, perfect for use with Pertronix electronic ignition and Pertronix Flamethrower HT Leads, but can be used with standard points and condenser and standard 7mm HT leads.
It`s higher voltage allows for larger spark plug gaps for added power, smoother response and better fuel economy.
Product Features:
- 3.0 Ohm primary resistance
- 9.0 Ohm secondary resistance
- 80:110.0mH primary inductance
- Oil filled
- Internally resisted
Flamethrower HT Leads
Often the cause of poor ignition is when your High Tension Leads or HT Leads as they are more commonly known are breaking down and need replacing.
Most modern electronic ignition systems require suppression style wires to preserve sensitive components. Flamethrower 8mm HT Leads provide enhanced RFI suppression and dual current paths for more power delivered to the spark plug.
HT Leads have a thick outer insulation around a central conductor core. This thick insulation prevents arcing from the cable to any earthed engine component. The central core is normally manufactured from copper.
RFI (Radio Frequency Interference) is naturally produced by the spark being radiated by the wires which may cause malfunctions in your electrical equipment.
Various manufactures have come up with various solutions to this problem by suppressing this.
In a nutshell the more electrical equipment you have in your car the better the quality of HT lead you will need.
If you are running electronic ignition then it is vital that you use a good quality set of leads so as not to effect the running of your car.
Product Features:
- Two current paths for reliability and redundancy. The primary path is a carbon impregnated fibreglass centre core and the secondary path is a stainless steel alloy.
- Low 500 ohm per foot resistance
- 8mm Silicone jacket to resist high temeratures, moisture, oil and chemicals
- EPDM (Ethylene Propylene Diene Methylene) inner insulation for superior heat resistance and prevention of arcing and voltage leaks
- Fibreglass reinforcing braid for added stregth and flexibility
Please Note: These are supplied with an extra long unfinished coil lead designed for performance engines that may have the coil fitted in a non standard location. Requires finishing and crimping before installation.
Fitting: Sold as a set of 5 leads which connect all the spark plugs to the distributor and then a shorter lead which connects the distributor to the ignition coil.
Fitment: These 8mm Flamethrower HT Leads replace the original leads fitted to all 1700cc, 1800cc and 2000cc Type 4 aircooled engines.
