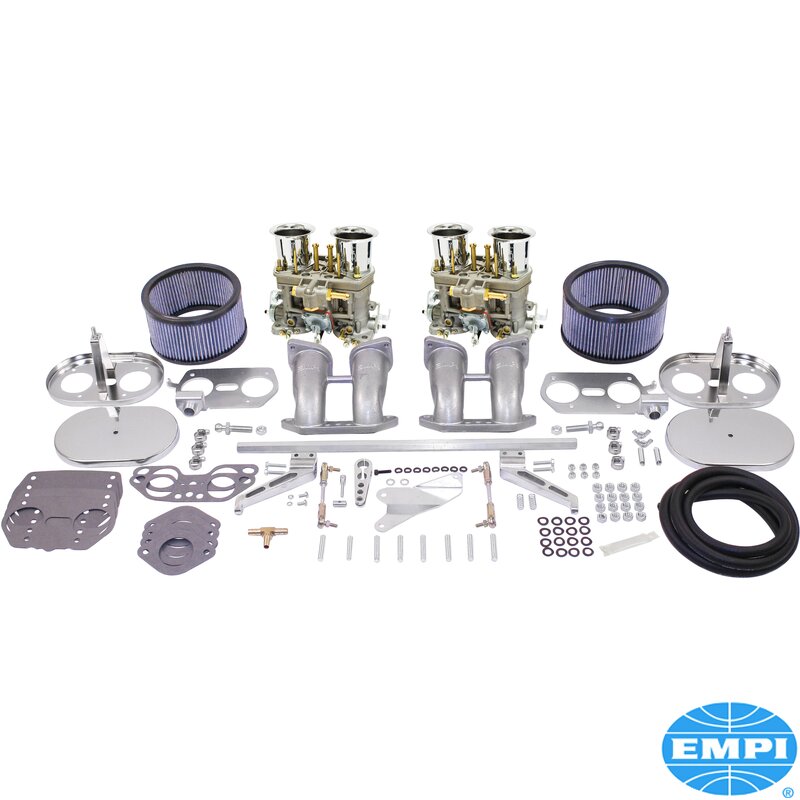

Twin 40mm EMPI HPMX Carburettor Kit - Type 4 Engines

The EMPI Hex Bar HPMX Carburettor kits have many features including:

• Aluminium Alloy Hex Bar with steel Ball Ends
• Sealed Heim Rod Ends
• Bail Burnished/Polished
• Offset Aluminium Intake Manifolds
• Thick High Strength Steel Linkage Mounts
• Chrome Air Filters with High Flow Gauze Elements
• Coil Relocation Mount
• Brass Fuel Tee
• Detailed and Illustrated Instructions

EMPI HPMX CARBURETTOR

Performance, reliability and race proven.

EMPI HPMX Carburettors offer ultimate engine tuning with total air and fuel metering and adjustment.

The EMPI HPMX series have separate idle and main circuits featuring changeable air and fuel jets.

Intake air is metered by changeable venturies and the accelerator pump is adjustable for maximum acceleration.

Jets, gaskets and repair parts are readily available.

Features new extended idle jet vent tubes.  This upgrade virtually eliminates clogged idle jets.

Details

• 52 Idle Jet
• 130 Main jet
• 170 Air Corrector
• 550 Ex. Pump jets
• 50 Accel. Pump Jets
• F11 Emulsion Tube
• 28mm Venturies
