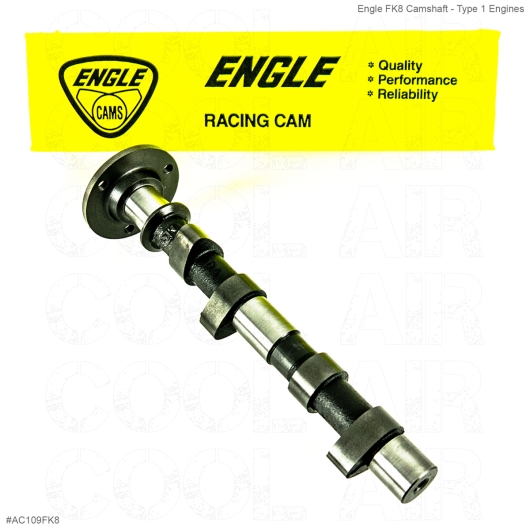

Engle FK8 Camshaft - Type 1 Engines

Engle`s FK Series camshafts are for all out race use and should not be used on the street due to the high lift`s and durations.

Quality: Genuine Engle

Fitment: These camshafts must be used with 1.40:1 rockers and dual valve springs.

16 grinds are available in the 108 degree lobe centre FK Series:

• FK41 = Duration – 269 degrees, Lift – 0.364″ (bottom to mid power band)
• FK42 = Duration – 275 degrees, Lift – 0.373″ (medium displacement engines)
• FK43 = Duration – 281 degrees, Lift – 0.383″ (large displacement engines)
• FK44 = Duration – 287 degrees, Lift – 0.391″ (power 3000 – 7000 RPM)
• FK45 = Duration – 295 degrees, Lift – 0.401″ (power 3500 – 7500 RPM)
• FK46 = Duration – 301 degrees, Lift – 0.408″ (power 3800 – 7800 RPM)
• FK47 = Duration – 308 degrees, Lift – 0.419″ (power 4000 – 8000 RPM)
• FK48 = Duration – 312 degrees, Lift – 0.419″ (power 4500 – 8200 RPM)
• FK65 = Duration – 280 degrees, Lift – 0.342″ (small displacement engines)
• FK7 = Duration – 288 degrees, Lift – 0.357″ (medium displacement engines)
• FK8 = Duration – 298 degrees, Lift – 0.382″ (large displacement engines)
• FK10 = Duration – 310 degrees, Lift – 0.385″ (Drag Racing Cam)
• FK87 = Duration – 320 degrees, Lift – 0.401″ (Drag Racing Cam)
• FK89 = Duration – 328 degrees, Lift – 0.416″ (Drag Racing Cam)
• FK97 = Duration – 328 degrees, Lift – 0.443″ (Drag Racing Cam, use with wide lifters)
• FK98 = Duration – 332 degrees, Lift – 0.446″) Drag racing Cam, use with wide lifters)

Applications:

VW Beetle: 1960 – 1979

VW Splitscreen Van: 1960 – 1967

VW Baywindow Van: 1968 – 1979

VW Karmann Ghia: 1960 – 1974

VW Type 3: 1961 – 1973

VW Trekker: 1968 – 1983

VW Buggy + Baja: 1960 – 1979
