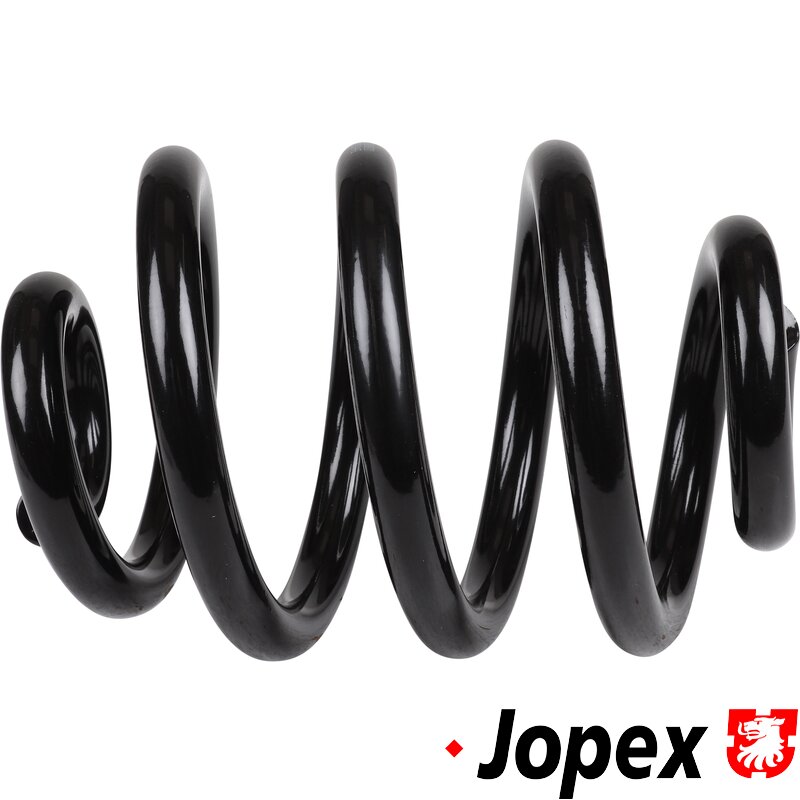

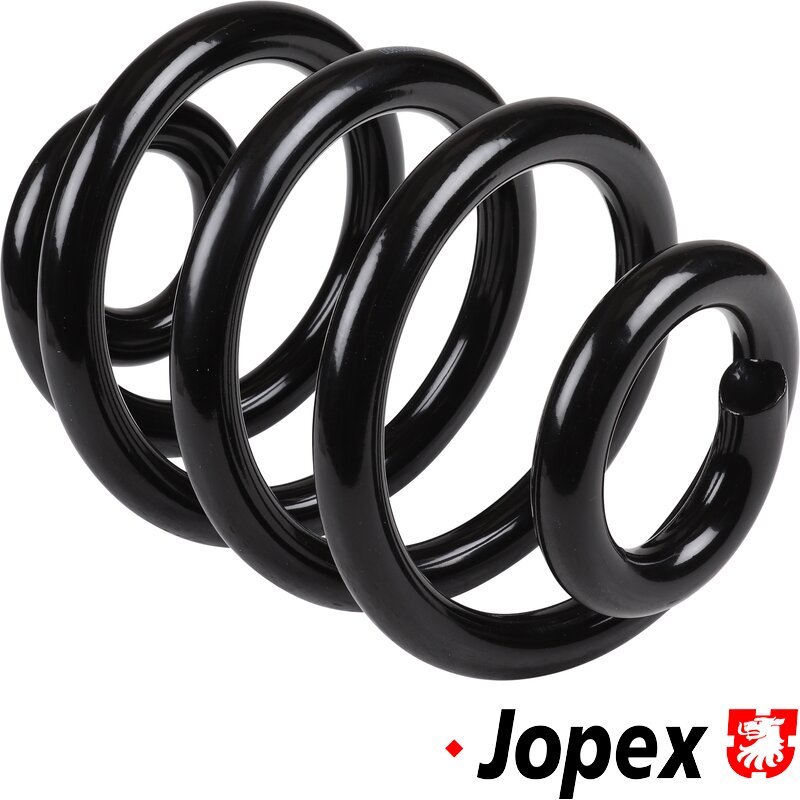

T4 Rear Spring - White

Original Transporter T4 Bus rear coil springs are colour coded from the factory.  Each colour identifies the weight limit rating of the spring.

This coil spring is designed to replace the white versions which have a payload rating up to 1000kg`s.

Sold separately

NOTE: We recomend always chaning both springs at the same time.

Specifications

Axle Load – up to 1000kg

Wheelbase – 2920mm or 3320mm

NOT FOR CALIFORNIA MODELS

Spring Design – Coil Spring with inconstant wire diameter

Fitting Position – Rear Axle

Thickness – 10mm

Length – 272mm

Outer Diameter – 160mm

Colour Code – White
