T5 Clutch Kit - 2.5 TDI (AXD,BNZ) - With Dual Mass Flywheel

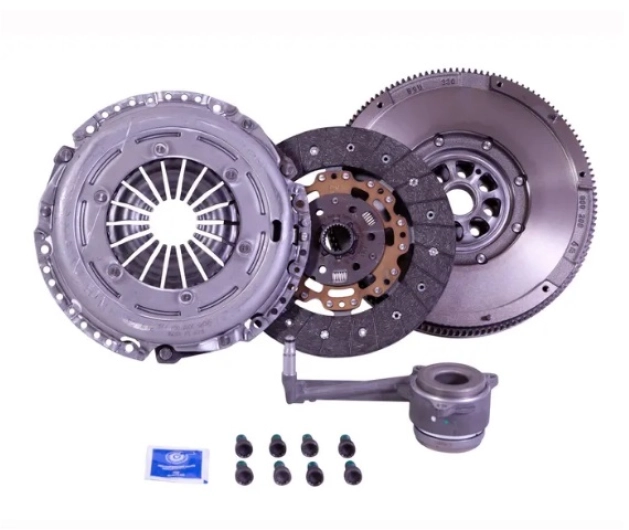

SACHS clutch kit with dual mass flywheel for T5 Transporters with 2.5 TDI engines.

For use on the following models:

2.5 TDI (AXD Engine Code)

2.5 TDI (BNZ Engine Code)

What is a Dual Mass Flywheel?

The dual mass flywheel is designed to protect a vehicle`s driveline from the torsional vibrations of the engine.

It’s fitted to vehicle equipped with a manual gearbox and is located at the end of the crankshaft.

It’s fitted mostly to diesel engines and high torque output petrol engines.

Ultimately, the aim of the dual mass flywheel (also known as the DMF) is to make the engine starting process, the idling process and the gearchange smoother.

It consists of two flywheels that rotate independently of each other. One is attached to the clutch assembly and the other to the engine.
Between the two flywheels are a series of springs, which dampen the engine vibrations and prevent most of them from reaching the gearbox.

How reliable are dual mass flywheels?

This all depends on your driving style.
Lots of stop-start driving, for example in town, puts more stress on the DMF because it’s working hardest when the engine is idling and when you’re moving off from a stationary position.

However, allowing the engine to labour in high gears also puts a strain on the DMF.

Symptoms of a worn DMF include increasing vibrations, especially through the clutch pedal.
You may also hear a rattle, which will disappear when you depress the clutch.

DMFs can last more than 100,000 miles but may wear out in as little as 20,000 – it depends on the quality of the part and your driving style.

Many mechanics recommend changing the dual mass flywheel whenever the clutch is replaced, because it’s accessed more easily when this job is being carried out, but there’s a good chance the DMF will be in good health.

The problem is, you just don’t know until you remove it, and it’s considered a false economy to leave it in place and change only the clutch.
